A strange thing, which can be found in an underground cavern below the Hathor-temple in Dendera, Egypt. A few pictures of bulb-like devices (Egyptian Lamp), into which two small arms reach before its thick, rounded end. These arms are supported by a column which looks much like a modern high voltage insulator. At the thin end however runs something like a cable into the glass bulb. From this striking out and almost reaching the arms on the other side a snake can be seen, hanging in the air. The whole arrangement has a striking resemblance to an electric lamp.
The Baghdad battery
The clay jar and others like it are part of the holdings of the National Museum of Iraq and have been attributed to the Parthian Empire — an ancient Asian culture that ruled most of the Middle East from 247 B.C. to A.D. 228. The jar itself has been dated to sometime around 200 B.C. It was first described in 1938 by German archaeologist Wilhelm Konig, and to this day, it is uncertain whether Konig dug it up himself or found it archived in the museum. So how is it that a 2,000-year-old clay jar can be called a battery? Those who’ve examined it closely say that there’s little else that it can be. The nondescript earthen jar is only 5½ inches high by 3 inches across. The opening was sealed with an asphalt plug, which held in place a copper sheet, rolled into a tube. This tube was capped at the bottom with a copper disc held in place by more asphalt. A narrow iron rod was stuck through the upper asphalt plug and hung down into the center of the copper tube — not touching any part of it. Fill the jar with an acidic liquid, such as vinegar or fermented grape juice, and you have yourself a battery capable of generating a small current. The acidic liquid permits a flow of electrons from the copper tube to the iron rod — an electric flow — when the two metal terminals are connected.
This is known as an electrochemical reaction, and it’s not any different from how the batteries in your Walkman work. Experiments with models of the Baghdad Battery have generated between 1.5 and 2 volts. Not a lot of power. So what would batteries have been used for 2,000 years ago? It’s well known that the Greeks and Romans used certain species of electric fish in the treatment of pain — they’d literally go stand on a live electric eel until their gout-pained feet went numb. Perhaps the battery was used as a ready source of less slimy analgesic electricity. Other theories hold that several batteries could have been linked together to generate a higher voltage for the use in electroplating gold to a silver surface. More experiments with several Baghdad-type batteries have shown this to be possible. The little jar in Baghdad suggests that Volta didn't invent the battery, but reinvented it.
The Baghdad Battery, sometimes referred to as the Parthian Battery, is the common name for a number of artifacts created in Mesopotamia, during the Persian dynasties of Parthian or Sassanid period (the early centuries AD), and probably discovered in 1936 in the village of Khuyut Rabbou'a, near Baghdad, Iraq. These artifacts came to wider attention in 1938 when Wilhelm König, the German director of the National Museum of Iraq, found the objects in the museum's collections. In 1940, König published a paper speculating that they may have been galvanic cells, perhaps used for electroplating gold onto silver objects. This interpretation continues to be considered as at least a hypothetical possibility. If correct, the artifacts would predate Alessandro Volta's 1800 invention of the electrochemical cell by more than a millennium.
The Baghdad Battery

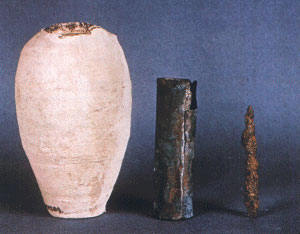

In 1936, while excavating ruins of a 2000-year-old village near Baghdad, workers discovered mysterious small vase. A 6-inch-high pot of bright yellow clay dating back two millennia contained a cylinder of sheet-copper 5 inches by 1.5 inches. The edge of the copper cylinder was soldered with a 60-40 lead-tin alloy comparable to today's solder. The bottom of the cylinder was capped with a crimped-in copper disk and sealed with bitumen or asphalt. Another insulating layer of asphalt sealed the top and also held in place an iron rod suspended into the center of the copper cylinder. The rod showed evidence of having been corroded with an acidic agent.
The vessel showed signs of corrosion, and early tests revealed that an acidic agent, such as vinegar or wine had been present.
In the early 1900s, many European archaeologists were excavating ancient Mesopotamian sites, looking for evidence of Biblical tales like the Tree of Knowledge and Noah's flood.
Konig did not waste his time finding alternative explanations for his discovery. To him, it had to have been a battery.
Though this was hard to explain, and did not sit comfortably with the religious ideology of the time, he published his conclusions. But soon the world was at war, and his discovery was forgotten.
Scientific awareness
More than 60 years after their discovery, the batteries of Baghdad - as there are perhaps a dozen of them - are shrouded in myth.
"The batteries have always attracted interest as curios," says Dr Paul Craddock, a metallurgy expert of the ancient Near East from the British Museum.
"They are a one-off. As far as we know, nobody else has found anything like these. They are odd things; they are one of life's enigmas."
No two accounts of them are the same. Some say the batteries were excavated, others that Konig found them in the basement of the Baghdad Museum when he took over as director. There is no definite figure on how many have been found, and their age is disputed.
Most sources date the batteries to around 200 BC - in the Parthian era, circa 250 BC to AD 225. Skilled warriors, the Parthians were not noted for their scientific achievements.
"Although this collection of objects is usually dated as Parthian, the grounds for this are unclear," says Dr St John Simpson, also from the department of the ancient Near East at the British Museum.
"The pot itself is Sassanian. This discrepancy presumably lies either in a misidentification of the age of the ceramic vessel, or the site at which they were found."
Underlying principles
In the history of the Middle East, the Sassanian period (circa AD 225 - 640) marks the end of the ancient and the beginning of the more scientific medieval era.
Though most archaeologists agree the devices were batteries, there is much conjecture as to how they could have been discovered, and what they were used for.
How could ancient Persian science have grasped the principles of electricity and arrived at this knowledge?
Perhaps they did not. Many inventions are conceived before the underlying principles are properly understood.
The Chinese invented gunpowder long before the principles of combustion were deduced, and the rediscovery of old herbal medicines is now a common occurrence.
You do not always have to understand why something works - just that it does.
Enough zap
It is certain the Baghdad batteries could conduct an electric current because many replicas have been made, including by students of ancient history under the direction of Dr Marjorie Senechal, professor of the history of science and technology, Smith College, US.
"I don't think anyone can say for sure what they were used for, but they may have been batteries because they do work," she says. Replicas can produce voltages from 0.8 to nearly two volts.
Making an electric current requires two metals with different electro potentials and an ion carrying solution, known as an electrolyte, to ferry the electrons between them.
Connected in series, a set of batteries could theoretically produce a much higher voltage, though no wires have ever been found that would prove this had been the case.
"It's a pity we have not found any wires," says Dr Craddock. "It means our interpretation of them could be completely wrong."
But he is sure the objects are batteries and that there could be more of them to discover. "Other examples may exist that lie in museums elsewhere unrecognised".
He says this is especially possible if any items are missing, as the objects only look like batteries when all the pieces are in place.
Possible uses
Some have suggested the batteries may have been used medicinally.
The ancient Greeks wrote of the pain killing effect of electric fish when applied to the soles of the feet.
The Chinese had developed acupuncture by this time, and still use acupuncture combined with an electric current. This may explain the presence of needle-like objects found with some of the batteries.
But this tiny voltage would surely have been ineffective against real pain, considering the well-recorded use of other painkillers in the ancient world like cannabis, opium and wine.
Other scientists believe the batteries were used for electroplating - transferring a thin layer of metal on to another metal surface - a technique still used today and a common classroom experiment.
This idea is appealing because at its core lies the mother of many inventions: money.
In the making of jewellery, for example, a layer of gold or silver is often applied to enhance its beauty in a process called gilding.
Grape electrolyte
Two main techniques of gilding were used at the time and are still in use today: hammering the precious metal into thin strips using brute force, or mixing it with a mercury base which is then pasted over the article.
These techniques are effective, but wasteful compared with the addition of a small but consistent layer of metal by electro-deposition. The ability to mysteriously electroplate gold or silver on to such objects would not only save precious resources and money, but could also win you important friends at court.
Let's hope the world manages to resolve its present problems so people can go and see them.
A palace, kingdom, or even the sultan's daughter may have been the reward for such knowledge - and motivation to keep it secret.
Testing this idea in the late seventies, Dr Arne Eggebrecht, then director of Roemer and Pelizaeus Museum in Hildesheim, connected many replica Baghdad batteries together using grape juice as an electrolyte, and claimed to have deposited a thin layer of silver on to another surface, just one ten thousandth of a millimetre thick.
Other researchers though, have disputed these results and have been unable to replicate them.
"There does not exist any written documentation of the experiments which took place here in 1978," says Dr Bettina Schmitz, currently a researcher based at the same Roemer and Pelizaeus Museum.
"The experiments weren't even documented by photos, which really is a pity," she says. "I have searched through the archives of this museum and I talked to everyone involved in 1978 with no results."
Tingling idols
Although a larger voltage can be obtained by connecting more than one battery together, it is the ampage which is the real limiting factor, and many doubt whether a high enough power could ever have been obtained, even from tens of Baghdad batteries.
One serious flaw with the electroplating hypothesis is the lack of items from this place and time that have been treated in this way.
"The examples we see from this region and era are conventional gild plating and mercury gilding," says Dr Craddock. "There's never been any untouchable evidence to support the electroplating theory."
He suggests a cluster of the batteries, connected in parallel, may have been hidden inside a metal statue or idol.
He thinks that anyone touching this statue may have received a tiny but noticeable electric shock, something akin to the static discharge that can infect offices, equipment and children's parties.
"I have always suspected you would get tricks done in the temple," says Dr Craddock. "The statue of a god could be wired up and then the priest would ask you questions.
"If you gave the wrong answer, you'd touch the statue and would get a minor shock along with perhaps a small mysterious blue flash of light. Get the answer right, and the trickster or priest could disconnect the batteries and no shock would arrive - the person would then be convinced of the power of the statue, priest and the religion."
Magical rituals
It is said that to the uninitiated, science cannot be distinguished from magic. "In Egypt we know this sort of thing happened with Hero's engine," Dr Craddock says.
Hero's engine was a primitive steam-driven machine, and like the battery of Baghdad, no one is quite sure what it was used for, but are convinced it could work.
If this idol could be found, it would be strong evidence to support the new theory. With the batteries inside, was this object once revered, like the Oracle of Delphi in Greece, and "charged" with godly powers?
Even if the current were insufficient to provide a genuine shock, it may have felt warm, a bizarre tingle to the touch of the unsuspecting finger.
At the very least, it could have just been the container of these articles, to keep their secret safe.
Perhaps it is too early to say the battery has been convincingly demonstrated to be part of a magical ritual. Further examination, including accurate dating, of the batteries' components are needed to really answer this mystery.
No one knows if such an idol or statue that could have hidden the batteries really exists, but perhaps the opportunity to look is not too far away - if the items survive the looming war in the Middle East.
"These objects belong to the successors of the people who made them," says Dr Craddock. "Let's hope the world manages to resolve its present problems so people can go and see them."
In 1940, Willard F.M. Gray, an engineer at the General Electric High Volatage Laboratory in Pittsfield, Massachusetts, read of Konig's theory. Using drawings and details supplied by German rocket scientist Willy Ley, Gray made a replica of the battery. Using copper sulfate solution, it generated about half a volt of electricity.
In 1970s, German Egyptologist, Arne Eggebrecht built a replica of the Baghdad battery and filled it with freshly pressed grape juice, as he speculated the ancients might have done. The replica generated 0.87V. He used current from the battery to electroplate a silver statuette with gold.
This experiment proved that electric batteries were used some 1,800 years before their modern invention by Alessandro Volta in 1799.
It also seems that the use of similar batteries can be safely placed into ancient Egypt, where several objects with traces of electroplated precious metals have been found at different locations. There are several anomalous finds from other regions, which suggests use of electricity on a grander scale.
The Riddle of "Baghdad's batteries"
Arran Frood investigates what could have been the very first batteries and how these important archaeological and technological artefacts are now at risk from the impending war in Iraq.
I don't think anyone can say for sure what they were used for, but they may have been batteries because they do work Dr Marjorie Senechal
War can destroy more than a people, an army or a leader. Culture, tradition and history also lie in the firing line.
Iraq has a rich national heritage. The Garden of Eden and the Tower of Babel are said to have been sited in this ancient land.
In any war, there is a chance that priceless treasures will be lost forever, articles such as the "ancient battery" that resides defenceless in the museum of Baghdad.
For this object suggests that the region, whose civilizations gave us writing and the wheel, may also have invented electric cells - two thousand years before such devices were well known.
Biblical clues
It was in 1938, while working in Khujut Rabu, just outside Baghdad in modern day Iraq, that German archaeologist Wilhelm Konig unearthed a five-inch-long (13 cm) clay jar containing a copper cylinder that encased an iron rod.
